Affordable Mini 810nm NIR-Only Light Panel!
The GembaRed Vector offers advanced single-wavelength treatment in a convenient mini panel size!
- Single wavelength 810nm in a mini panel!
- 4 Red 660nm LEDs in the corners as on/off indicators.
- The most effective and deepest penetrating wavelength!
- 3rd party measured intensity for accurate dosing.
- Sturdy metal frame.
- Automatic 10 minute timer and Simple On/Off button!
- Perfectly silent with no fan!
- Ultra low nnEMF panel with external adapter!
- Practically no flicker.
The GembaRed Vector 810nm is the ultimate specialized NIR light panel!
Unlike our versatile original GembaRed Vector (which has 4 wavelengths), this specialized product contains only a single LED wavelength of 810nm NIR (invisible) energy. Please visit the other Vector panel if you want a more versatile version with more wavelengths.
The Vector 810nm NIR panel has 4 Red 660nm LEDs in the corners that serve as indicators to help you tell if the device is On or Off. As well they may confer some benefits on their own.
This Vector 810nm Mini has a built-in stand, making it easy and convenient to do treatments on a desk, end table, or bedside table.
Using 810nm wavelength is well-known in the science as the deepest penetration for red light therapy, as well as it acts on multiple mechanisms of actions. This makes it highly regarded as one of the best wavelengths to use for red light therapy.
Clinical studies have shown that skin-contact offers up to 5x better penetration than non-contact (i.e. at 6 inches away), so it isn't enough just to have the "best" wavelength if you need deep penetration. We make our Vector panels ultra-low EMF so it can be used on the skin.
It is powered by a high quality 12v adapter keeping it ultra low EMF and flicker. This mini light is ultra thin and lightweight, making it fantastic for travel and portability.
LED Rated Wattage: 40 x 3W LEDs
Consumed Wattage: 15 W (with adapter)
LED Specified Wavelengths:
Near-Infrared (NIR) 810nm
3rd Party Spectrum Analysis:
Verified peak at 814nm (at full temperature)
Distance from Panel Power Density
0 Inch* 34 mW/cm²
3 Inch 13 mW/cm²
6 Inch 12 mW/cm²
9 Inch 10 mW/cm²
12 Inch 9 mW/cm²
24 Inch 6 mW/cm²
*Based on total optical output divided by the area of the optics. Measurements 3-24 inch measured from the center of the panel
Total Optical Watts Output: 3.5 W
Treatment Area: 7.5 inch x 5 inch
Lens Angle: 30 degrees
Weight: 2 lbs
Overall Dimensions: 9 inch X 5 inch X 1.25 inch
Lifetime: typical 50,000 hours
Conformance: FCC, RoHS
Warranty: 2 Year Limited Warranty
- GembaRed Vector 810nm NIR LED Light Panel
- 12V Adapter and USA Plug
Deep Treatment: 0 inches away from skin for 5 minutes per area.
Superficial Tissue: 9 inches away from face or skin for 10 minutes per session.
Use up to 2 times per day on the desired area.
Input: DC 12 Volts, 1.5 Amps (by power adapter provided)
Percent Flicker: 0.2%
Flicker Index: 0.000
4 V/m Electric Field
0.13 milliGauss Magnetic Field
Not Sure Which GembaRed panel is right for you? Check our Product Guide by clicking here.
Made In China
Purchasing directly from GembaRed LLC - shipping within the USA is FREE! Please allow 1-3 business days processing time to ship, and an additional 2-10 business days for delivery depending on the location.
We do not currently ship internationally at this time.
** Disclaimer: This panel is designed for general wellness and information provided is for educational use only. As with starting any new general wellness activity such as fitness, diet, or supplementation; we advise you to meet with your wellness practitioner to ensure there are no contraindications with your current condition. Use of GembaRed LLC products or information does not constitute medical advice or treatment, and should not be used as a substitute for medical advice or treatment. Consult your doctor or biohacking coach for recommendations on how to effectively apply red light to your wellness routine.
After about 6 weeks of using the 810nm near-infrared Vector Mini the mystery elbow tendon injury I’ve been dealing with for almost ten years has vastly improved, and I’m finally able to do diamond pushups pain free again! I use it 2 to 3 times a day for ten minutes per session.
I’ve also put it under my forearm to blast my bloodstream with the infrared light, as well as laying it on my stomach to benefit all the organs. I chose this model over the near-infrared+far-infrared version because I really wanted to go for maximum targeted penetration depth, and I plan to eventually get a full body panel for maximum systemic benefits.
I like to use it in the dark, and I have two minor things I would change about it related to this. First, I wish the little light on the power cord was red instead of green, since as we know green light can disrupt circadian rhythm. I easily fixed this with a tiny piece of tape.
And second, I wish there was some kind of texture to the power button, since it’s very hard to find in a totally dark room. I also fixed this issue with a tiny piece of tape, just for the texture.
All in all, it feels super sturdy and seems like a product that’ll last forever, and I’m so stoked that my elbow has improved so much in six weeks.
The panel is smaller than I was expecting and I wish there were options for it to pulse and not to turn off every 10 minutes. Also too I find the four red light LEDs in the corners to be distracting when I use it on my head but the overall the quality of the product is high.
This little unit travels easily, allows me to continue to treat when I'm not home, significantly helps my dog's arthritis, and has propagated significant improvements in my skin, and muscular tone. I've even noticed much better dental health. The 810 nm range is noticeable.
Like the external power supply, allowing full contact and reasonable power levels for deeper penetration. Also, it’s light and so easy to point it where you want the 810 to go and do its work. Recommended.
Of the 3 Products; all of which I Like,
Vector Mini R + NIR,
and Vector Mini 810nm, the 810 has produced the most apparent results.
Example: I have Ocular Migraines(odd name, since the cause is not related to the eyes, but the brain), which are random for the most part, but fairly consistent 20 minutes after a physical workout. They present themselves with a gradual blur in my peripheral vision in one or the other eye, never both eyes at the same time. The blur at its peak, affects most of my peripheral vision in the affected eye, then gradually diminishes back to its starting point. This is generally a 30 minutes process, with a toss-up on a headache to follow.
Following a workout, I recognized the start of a migraine, I used the 810nm panel on various areas of my head(opposite side of the migraine), Temples, ear, back of ear, back of head, forehead. To my surprise, within 3-5 minutes, I briefly opened my eyes and did not see any blurred vision. Skeptical that it could have worked at all, let alone that quickly, I continued on for the full 10 minutes. Once the treatment was finished, I purposefully looked for signs of the migraine for about 30 minutes, it was gone, no headache, no blurry vision.
I have also had success using it for back rib pain, around the kidney area. Every time I used it, I felt 100% better and little to no pain. I did use it throughout the day since the pain eventually came back, but not as intense. That was yesterday, today, if I move the right way, I can kind of feel

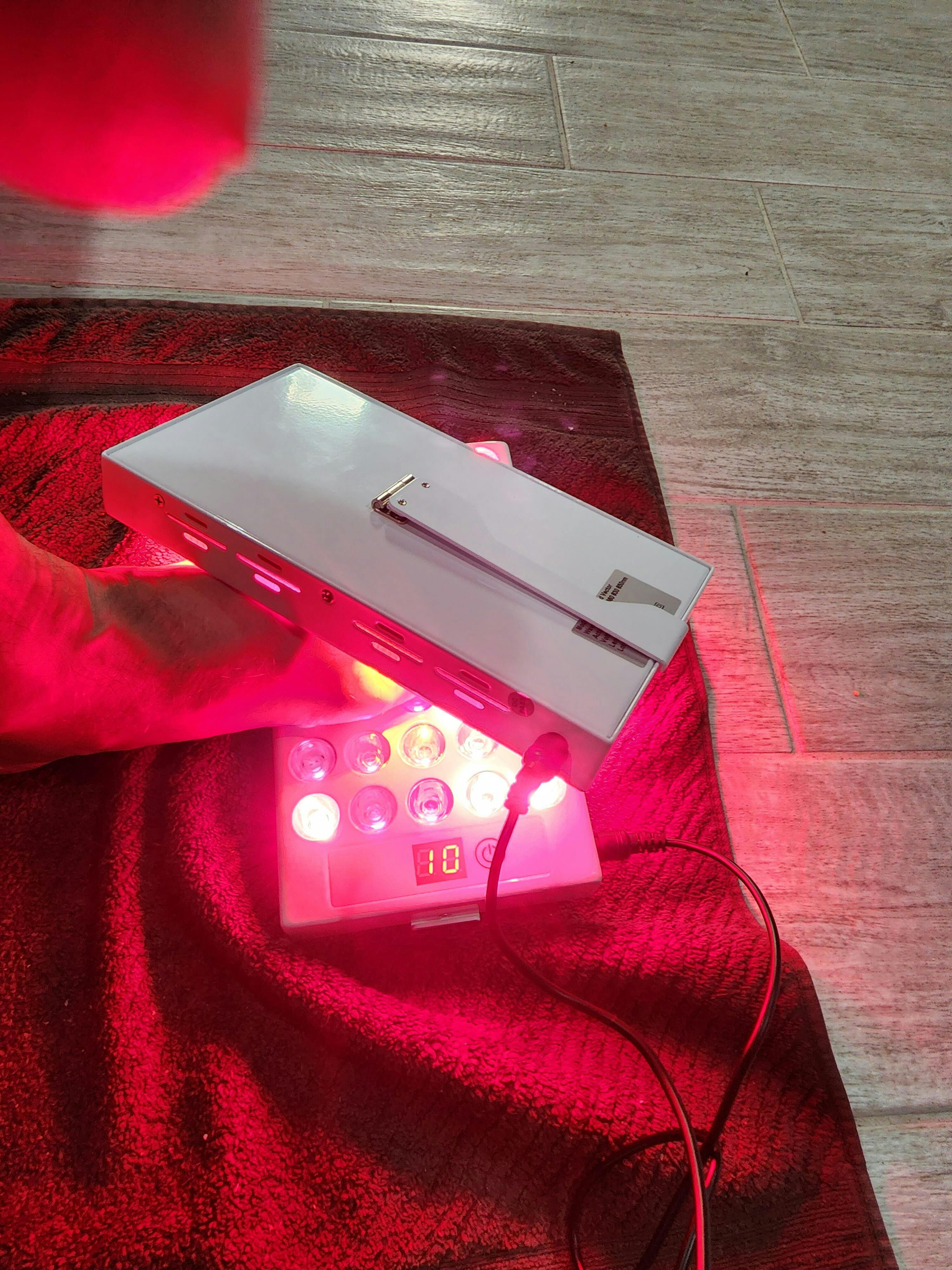

Morton's Neuroma: I sandwich my foot between the 810nm and R + NIR vector panels for 10 minutes, then flip panel positions and do another 10; Usually before and after a cardio workout or if my foot starts hurting from wearing shoes too long. Following a treatment, no more pain. This issue deteriorated for almost 3 years. It's to the point my toe is or was 50% numb. I'm not expecting a miracle here, however I have noticed a slight increase in my toes sensation/feeling. Before using the panels I was on the verge of having foot surgery to remove the inflamed nerve, not now. The key here is the 810nm. I tried the R + NIR panel prior to getting the 810nm and it didn't have much affect on the pain. The big difference occurred when I added the 810nm. To be fair, I have not tried the 810nm by itself, so it could be the panel combination that's really working.
I've also tried the 810nm for my sinus headaches, 90% pain and discomfort reduction. with 2, 10 minute sessions on the forehead. In addition my youngest tried the 810nm on a bad headache she was having, also a significant reduction in pain. 3 sessions, back of neck, and each ear.
I've had my panels for around 2 weeks
