Affordable Mini 810nm NIR-Only Light Panel!
The GembaRed Vector 2.0 offers advanced single-wavelength treatment in a convenient mini panel size!
Features:
- Single wavelength 810nm in a mini panel!
- Now with Convex Lenses that enhance skin compression!
- 4 Red 660nm LEDs in the corners as on/off indicators.
- Often regarded as the most effective and deepest penetrating wavelength!
- 3rd party measured intensity for accurate dosing.
- Sturdy metal frame.
- Automatic 10 minute timer and Simple On/Off button!
- Perfectly silent with no fan!
- Ultra low nnEMF panel with external adapter!
- Practically no flicker.
The GembaRed Vector 810nm is the ultimate specialized NIR light panel!
Unlike our versatile original GembaRed Vector (which has 4 wavelengths), this specialized product contains only a single LED wavelength of 810nm NIR (invisible) energy. Please visit the other Vector panel if you want a more versatile version with more wavelengths.
Note: The 810nm LEDs are invisible to the human eye, so they won't emit any visible light and may only glow faintly. Which is why we included 4 Red LEDs in the corners to help confirm when it is On or Off.

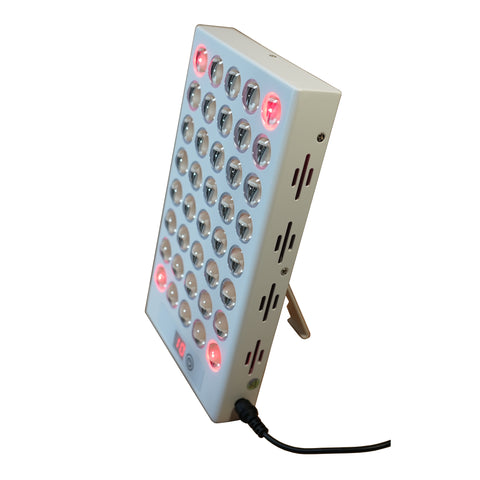

This Vector 810nm Mini has a built-in stand, making it easy and convenient to do treatments on a desk, end table, or bedside table.
Using 810nm wavelength is well-known in the science as the deepest penetration for red light therapy, as well as it acts on multiple mechanisms of actions. This makes it highly regarded as one of the best wavelengths to use for red light therapy.
Updated: The Vector 2.0 version now uses convex lenses that help compress the tissue further when using the skin contact method. The 810nm wavelength suffers higher scattering by being a relatively shorter NIR wavelength. This is why skin contact is essential to reap the deep penetration with 810nm as it compresses the skin and creates a path with more optical coupling that reduces the light scattering in the tissue.
Clinical studies have shown that skin-contact offers up to 5x better penetration than non-contact (i.e. at 6 inches away), so it isn't enough just to have the "best" wavelength if you need deep penetration. We make our Vector panels ultra-low EMF so it can be used on the skin.
It is powered by a high quality 12v adapter keeping it ultra low EMF and flicker. This mini light is ultra thin and lightweight, making it fantastic for travel and portability.
Specifications:
LED Rated Wattage: 40 x 3W LEDs
Consumed Wattage: 18 W (with adapter)
LED Specified Wavelengths:
Near-Infrared (NIR) 810nm
3rd Party Spectrum Analysis:
Verified peak at 814nm (at full temperature)
Irradiance:
Distance from Panel Power Density
0 Inch* 68 mW/cm²
1 Inch 26 mW/cm²
3 Inch 22 mW/cm²
12 Inch 7 mW/cm²
18 Inch 4 mW/cm²
24 Inch 2 mW/cm²
*Measured directly in front of the lens.
Total Optical Watts Output: 5.6 W
Dosing:
- 4 J/cm^2 per minute with skin contact
- 336 Joules per minute with skin contact
Treatment Area: 8 inch x 5 inch
Lens Angle: 60 degrees
Weight: 2 lbs
Overall Dimensions: 9.5 inch X 5.5 inch X 1.25 inch
Lifetime: typical 50,000 hours
Conformance: FCC, RoHS
Warranty: 2 Year Limited Warranty
Whats included?
- GembaRed Vector 810nm NIR LED Light Panel
- 12V Adapter and USA Plug
Usage Guidelines:
Deep Treatment: 0 inches away (skin contact) for 2-3 minutes per area.
Superficial Tissue: 12 inches away from face or skin for 10 minutes per session.
Use up to 2 times per day on the desired area. Or as little as 2-3 times per week for adequate benefits.
Power Input:
Input: DC 12 Volts, 1.5 Amps (by power adapter provided)
Additional Details:
Flicker:
Percent Flicker: 0.3%
Flicker Index: 0.000
EMF Measurements:
0 inches:
4 V/m Electric Field
0.13 milliGauss Magnetic Field
Not Sure Which GembaRed panel is right for you? Check our Product Guide by clicking here.
Made In China
Shipping:
Purchasing directly from GembaRed LLC - shipping within the USA is FREE! Please allow 1-3 business days processing time to ship, and an additional 2-10 business days for delivery depending on the location.
We do not currently ship internationally at this time.
** Disclaimer: This panel is designed for general wellness and information provided is for educational use only. As with starting any new general wellness activity such as fitness, diet, or supplementation; we advise you to meet with your wellness practitioner to ensure there are no contraindications with your current condition. Use of GembaRed LLC products or information does not constitute medical advice or treatment, and should not be used as a substitute for medical advice or treatment. Consult your doctor or biohacking coach for recommendations on how to effectively apply red light to your wellness routine.
